New Holland Range of Products

TT Series

COMPACT, POWERFUL PERFORMANCE

Specification	TT.55	TT.75
Engine	New Holland S8000
No. of cylinders / aspiration	4 / naturally
Capacity	3 / naturally	3908
Bore x stroke	2931	104x115
Power at rated speed (2300rpm) - ECE R120	104x115	104x115
Max. torque (gross)	40.25/54	54.7/75
Torque rise	20081400	25781400
Fuel tank capacity	25	25
Transmission - 30 kph	60	60
BF-2/R, constant mesh & sliding mesh longitudinally synchronised on 3rd & 4th gear with epicyclical reduction for low - high range selection
Speed range	2.97 - 29.74	3.18 - 31.85
Optional with creeper [F+R]	12+3	12+3
Min. speed with creeper [kph]	0.96	1.03
Optional without creeper [F+R]	12+3	12+3
Speed range [kph]	2.0 - 29.74	2.14 - 31.85
ROPS and Canopy
2WD front axle	O	O
4WD front axle	●	●
Flexion Bar lower link draft sensing	●	●
Rear linkage category	Cat. II	Cat. II
Mechanical tilt with Lift-O-Matic™	●	●
Position, draft, mixed and float controls	●	●
Main pump flow - Standard [lpm]	45	45
Steering pump flow [lpm]	28	28
Max. number of remote valves	2	2
Maximum lift capacity at ball ends with no assist arms [kg]	1400	1500
Maximum lift capacity at ball ends with assist arms [kg]	1850	2000
Engine speed at: 540 rpm [rpm]	1967	1967
PTO activation	mechanical	mechanical
Turn angle 2WD/4WD [°]	52/38	52/38
Min. turn radius 2WD/4WD [mm]	3205/4200	3275/4200
A Overall length 2WD/4WD including FWC [mm]	3500	3540/3640
B Overall width 2WD/4WD [mm]	1920	2010
C Height to top of exhaust 2WD/4WD [mm]	2200/2200	2400/2400
D Wheelbase 2WD/4WD	2050/2055	2210/2140
E Track width Front 2WD [mm]	1410 - 1710	1410 - 1710
Front 4WD [mm]	1445 - 1875	1545 - 1875
Rear Min. / Max. (all axle types) [mm]	1570 - 2100	1520 - 1890
F Ground clearance under rear axle 2WD/4WD	455/434	485/490
Minimum weight 2WD/4WD with ROPS & FWC 55Kg [kg]	2200/2400	2450/2700

More Details Request a Quote Download Brochure

TT3 Series

COMPACT, POWERFUL PERFORMANCE

MODELS		TT3.35	TT3.40	TT3.45	TT3.50
Engine
No. cylinders / aspiration / valves / emission level		3/NA/2/Tier 2	3/NA/2/Tier 2	3/NA/2/Tier 2	3/NA/2/Tier 2
Capacity	(litres)	2.6	2.6	2.6	2.6
Min. governed power *	(kW/hp)	24.3/32.6	26.1/35	28.3/38	30.9/41.4
PTO power at rated speed	(kW/hp)	21.7/29.1	23.4/31.4	25.7/34.4	28.4/38.1
Max. torque @ 1400 rpm	(Nm)	142 @ 1400	157 @ 1300	163 @ 1300	180 @ 1300
Fuel tank capacity	(L)	42	42	42	42
Transmission & Clutch
Double clutch		●	●	●	●
(8+2) Mechanical constantmesh		●	●	●	●
(8+8) Mechanical Synchro Shuttle transmission		○	○	○	○
Max. travelling speed / Minimum road speed (kph)	(kph)	23.4/1.14	23.4/1.14	23.4/1.14	23.9/1.16
Front Axle
(2WD) Front axle		●	●	●	●
(4WD) Front axle		○	○	○	○
Turning radius 2WD / 4WD	(M)	3.1/NA	3.1/3	3.1/3	3.1/3
Rear Axle
Planetary reduction final drive		●	●	●	●
Differential lock (Mechanically engaged)		●	●	●	●
Oil immersed multiple braking system		●	●	●	●
Hydraulics
Max. pump flow / pump pressure	(Lpm / Bar)	29/210	29/210	29/210	29/210
Independent steering pump flow / pump pressure	(Lpm / Bar)	20/210	20/210	20/210	20/210
Rear auxiliary remote valves (Max. number) *		2	2	2	2
Linkage
Category		II	II	II	II
Lift capacity @ ball ends (std)	(kg)	1100	1100	1100	1100
Lift capacity @ ball ends (opt)	(kg)	1400	1400	1400	NA
PTO
Independent rear PTO		●	●	●	●
Rear PTO	(rpm)	540	540	540	540
Rear PTO	(rpm)	540E	540E	540E	540E
Stationary (flanged) PTO	(rpm)	●	●	●	●
(540/1000) Ground speed PTO	(rpm)	○ / NA	○ / NA	○ / NA	○ / NA
Rear PTO engine speed @ 540rpm	(rpm)	2014	2014	2014	2014
Rear PTO engine speed @ 540E rpm	(rpm)	1570	1570	1570	1570
Operator Environment
Mechanical vinyl seat with seat belt on inclined plate		●	●	●	●
Semi flat deck operator area		●	●	●	●
Deluxe open operator work area with operator wear mats		○	○	○	○
Frame and Canopy		●	●	●	●
Two post fixed ROPS with canopy		○	○	○	○
Fender cushion seat		○	○	○	○
Tyres
Front 7.50-16 8 Ply Ag		●	●	●	●
Rear 11.2-24 8 Ply Ag		NA	●	NA	●
Front 8.00/65-16 High lug		○	○	○	○
Rear 12.4-28 8 Ply High lug		NA	○	NA	○
Rear 13.6-28 6 Ply Ag		●	NA	●	NA
Rear 12.4-28 8 Ply High lug		○	○	○	○

More Details Request a Quote Download Brochure

TT4 Series

New Holland designed and developed the all new TT4 around you, effortlessly combining muscled
up performance with new appealing features, giving you, the farmer, the cutting edge in tractor
technology. Characterized by sturdy design and functional layout, the new TT4 thrives on being
pushed to the limit. The TT4 range are simple to operate, easy to maintain and built to go the
distance, offering maximum uptime and reduced maintenance cost, putting money back in your
pocket.

Specification	TT4.55	TT4.75	TT4.80	TT4.90
Engine*
No. cylinders / aspiration / valves / emission level	3 / T / 2 / Tier 3-3A	3 / TCA / 2 / Tier 3-3A	4 / TCA / 2 / Tier 3-3A	4 / TCA / 2 / Tier 3-3A
Capacity (Litres)	2.9	2.9	3.9	3.9
Rated power ISO TR14396-ECE R120 @ 2300rpm [kW/hp(CV)]	41/55	55/75	59.7/80	65.7/88
PTO power at rated speed [kW/hp(CV)]	36.6/49	48.5/66	50.7/68	55.2/74
Max. torque @ 1400rpm (Nm)	213	306	310	340
Torque rise (%)	25	25	25	25
Fuel capacity Standard / optional Auxiliary (Litres)	60 / 40	60 / 40	90	90
Synchro - Mechanical forward / Reverse shuttle	●	●	●	●
8x8 Mechanical Synchro Shuttle transmission	O	O	O	O
12x12 Mechanical Synchro Shuttle transmission (dash mounted)	●	●	●	●
Splitter Synchro Shuttle transmission 16x16 & 24x24	O	O	O	O
Minimum speed / Maximum road speed (kph)**	1.56 / 32.05	1.56 / 34.4	1.72 / 35.87	1.72 / 35.87
20x20 Mechanical Synchro Shuttle transmission with creeper	O	O	O	O
Creeper - Minimum speed (kph)**	0.27	0.27	0.30	0.30
4WD front axle	●	●	●	●
2WD front axle	O	O	O	O
Steering angle 4WD / Min. turn radius less brakes 4WD (°) / (m)	55 / 6	55 / 6.4	55 / 6.5	55 / 6.5
Planetary reduction final drive	●	●	●	●
Differential lock (mechanically engaged)	●	●	●	●
Oil immersed multidisc braking system	●	●	●	●
Main pump flow / pump pressure (Lpm / Bar)	45 / 207	45 / 207	45 / 207	45 / 207
Optional pump flow / pump pressure (Lpm / Bar)	54 / 207	54 / 207	54 / 207	54 / 207
Independent steering pump flow (Lpm / Bar)	28.8 / 210	28.8 / 210	28.8 / 210	28.8 / 210
Rear auxiliary remote valves (Std / Max. number)	1 / 3	1 / 3	1 / 3	1 / 3
Category	I / II	I / II	I / II	I / II
Lift capacity @ ball ends (Std / Opt) (kg)	2000 / 2500	2000 / 2500	2000 / 2500	2000 / 2500
Lift capacity @ 610mm behind ball ends (Std / Opt) (kg)	1845 / 2050	1845 / 2050	1650 / 2050	1650 / 2050
Independent rear PTO	●	●	●	●
Rear PTO (Std)	540	540	540	540
Rear PTO (Opt)	540E	540E	540E	540E
Rear PTO engine speed at 540rpm (rpm)	2217	2217	2198	2198
Rear PTO engine speed at 540Erpm (rpm)	1715	1715	1715	1715
Mechanical suspension seat with seat belt on inclined plane	●	●	●	●
Flat deck operator area	●	●	●	●
Suspended brake and clutch pedals	●	●	●	●
Canopy	O	O	O	O
Two post foldable ROPS platform	O	O	O	O
Shipping weight ROPS 2WD / 4WD (kg)	2286 / 2640	2514 / 2935	2825 / 3085	2825 / 3085
Maximum ballasted weight 2WD / 4WD (kg)	2705 / 2880	2750 / 2983	3630 / 3720	3630 / 3720

More Details Request a Quote Download Brochure

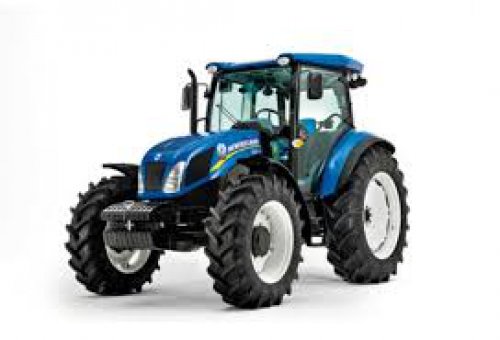

TD5 Series

- Fuel efficiency through advanced engine technology
- Power with a new range topping 110hp model
- Comfort with new VisionViewTM cab
- Versatility with new Powerhuttle transmission
- Productivity with new front loader
-

Specification	TD5.75	TD5.90	TD5.100	TD5.110
Engine*	New Holland S8000	New Holland S8000	New Holland S8000	New Holland S8000
No. of cylinders / aspiration / valves	4 / TI / 2	4 / TI / 2	4 / TI / 2	4 / TI / 2
Emission level	Tier 3	Tier 3	Tier 3	Tier 3
Capacity (cm³)	3908	3908	3908	3908
Rated horsepower - ISO TR14396 - ECE R120 (kW/hp)	56/75	66/88	73/98	81/110
Rated engine speed (rpm)	2300	2300	2300	2300
Max. torque - ISO TR14396 (Nm @ rpm)	298@1400	356@1400	390@1400	430@1400
Fuel tank capacity (l)	110	110	110	110
Service Intervals (hours)	300	300	300	300
Minimum speed (kph)	1.82	–	–	–
12x12 Synchro Shuttle™ transmission (30kph)	O	●	●	●
Minimum speed (kph)	1.82	1.76	1.86	1.79
12x12 Hydraulic Powershuttle transmission (30kph)	–	O	O	O
Minimum speed (kph)	1.82	1.82	1.86	1.79
20x12 Synchro Shuttle™ transmission [Optional Creeper (30kph)]	O	O	–	–
Minimum speed with Creeper (kph)	0.33	0.32	0.34	0.32
4WD front axle	●	●	●	●
Steering angle 4WD (°)	40	40	40	40
Main pump flow (l/min)	40.1	40.1	40.1	40.1
MegaFlow™ pump flow (l/min)	51.7	51.7	51.7	51.7
Steering and services pump flow (l/min)	29.6	29.6	29.6	29.6
Lift-O-Matic™ system	●	●	●	●
Mechanical Draft Control (MDC)	●	●	●	●
Remote valves Type Deluxe	Deluxe	Deluxe	Deluxe	Deluxe
Max. no. rear valves	3	3	3	3
Max. no. mid mount valves	2	2	2	2
Mid mount joystick control	O	O	O	O
Max. lift capacity at ball ends (with 2nd asst. ram) (kg)	3565	4700	4700	4700
Max. lift capacity through the range (610mm behind ball ends) (kg)	2700	3450	3450	3450
Front Loader Ready	O	O	O	O
Front Loader	O	O	O	O
PTO Ground speed	●	●	●	●
540	●	●	●	●
540 / 540E	O	O	O	O
540 / 1000	O	O	O	O
Platform with foldable ROPS	●	●	●	●
VisionView™ cab	O	O	O	O
High visibility roof panel	O	O	O	O
Standard air suspension seat with seat belt	O	O	O	O
Instructor seat with seat belt	O	O	O	O
Tiltable steering column	O	O	O	O
Air conditioning	O	O	O	O
Radio Ready	O	O	O	O
MP3 Radio (with aux input socket)	O	O	O	O
